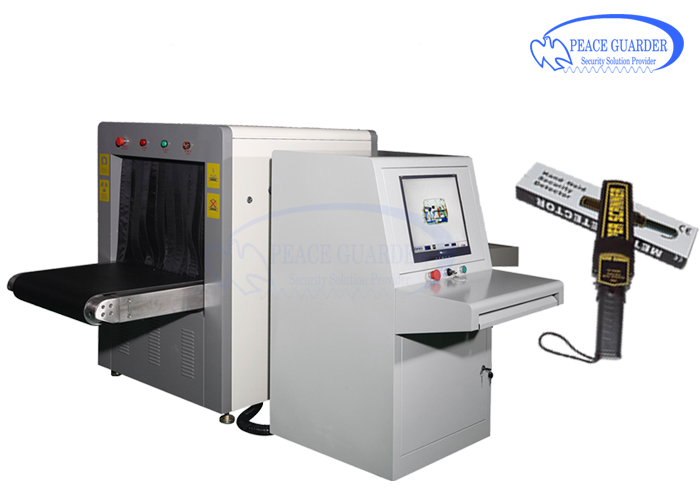

    Exhibition Turn Key Security X Ray Baggage Scanner With Tunnel Size 650 * 500 Mm

    Hotel / Exhibition X Ray Baggage Scanner with Tunnel Size 650 * 500 mm

    General Specification

    • Tunnel Size: 650(W)*500(H)mm
    • Conveyor Speed: 0.22m/s
    • Conveyor Max Load: 170kg
    • Dose per Inspection: <1.4uGy/h
    • Resolution: <0.0787mmMetal Wire
    • Spatial resolution Level:dia1.0mm , Vertical:dia1.0mm
    • Penetrate resolution:Dia 0.254mm
    • Penetration: 34mm Steel
    • Film Safety: Guarantee ISO1600 Film
    • X-ray Leakage: <0.05 uGy/h (at a distance of 5cm From external housing)

    X-ray Generator

    • Generate direct: Upward
    • Generate angle: 80 degree
    • Anode Voltage: 100~160Kv
    • Anode power: 0.4 to 1.2mA
    • Cooling / Duty Cycle: Oil Cooling /100%

    Image System


    X-ray Sensor:L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
    Monitor:High Resolution Color, LCD Accord, 17 inch
    Detector:2
    Color display:full color
    Image Processing:Edge enhancement, image strengthening,

    image lightening,reducing darkening, image returning, image retrieval

    Image Grey Level:4096
    Image Max Resolution:1024 * 1280 pixel
    Image Processing:24bit for processing real time
    Image storage:Storage 60000 pictures in real time
    Zones & Zoom:

    1-9 Image regions, 2,4,8,16 Times Enlarge,

    Whole screen continuous observation

    Multi-energetic

    distinguish objects:

    organic objects in orange,inorganic objects in blue, mixture in green
    High-energy/low energy:switch from high energy to low energy

    Installation Data

    • Operating Temperature/Humidity: 0℃~45℃/20%-95%(non-condensing)
    • Storage Temperature/Humidity: -26℃~60℃/20%-95%(non-condensing)
    • Operation Power:220AVC/(±10)50Hz±3Hz
    • Power Consumption:1.0KW(Max)
    • Noise: <65 dB

    Model: PG-6550

    Feature and Application:


    X-ray penetrate inspection, the object can be found within the metal structure, can display the naked eye

    can not see where the liquid is also very obvious object display.Used in the factory testing of security

    products and business units such as: electronic factories, shoe factories, toy factories, courts, railway

    stations, and event bag, line security management package.



    Payment and shippment:

    Payment term
    T/T directly,L/C formally, Escrow conventient, Western union etc.
    Shipping methods
    by air3-5 days, most expensive
    by express5-7 days, more expensive
    by sea15-28 days, cheapest
