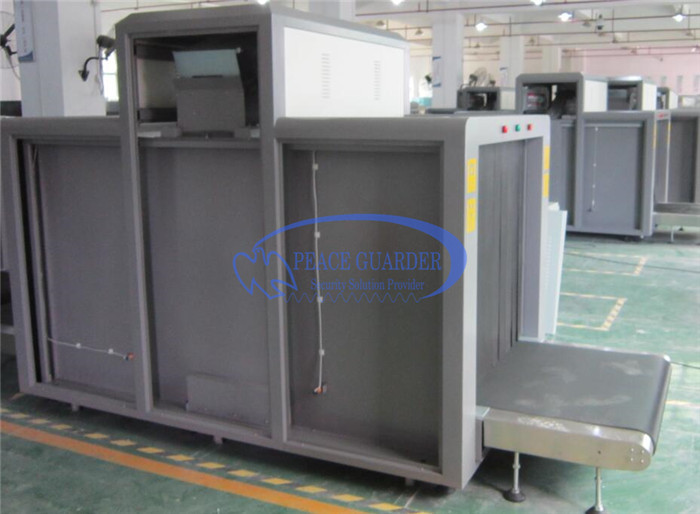

100*80 cm L-shape Xray generator X Ray Luggage Scanner with 0.22m /
s conveyor speed
Competitive Advantage:
Integrated, cost Effective, Turn-Key Security
Fit for small Baggage and Parcel Security Inspection.
Increased detection capability
Friendly interface for ease-of-use
Reliable performance and uncompromising value
Feature
X-ray penetrate inspection, the object can be found within the
metal structure, can display the naked eye
can not see where the liquid is also very obvious object
display.Used in the factory testing of security
products and business units such as: electronic factories, shoe
factories, toy factories, courts, railway
stations, and event bag, line security management package.
PeaceGuarder offers a modern technology to secure entry checkpoints
for important locations like airports, transport terminals,
buildings, schools, police stations ,and so on. Our X ray systems
for baggage and parcel, to detect contraband, weapons, dangerous
and illegal items. our middle size PG8065 easily accommodates the
inspection of small baggage and parcels. Our X RAY SYSTEM is based
on user-friendly design with ergonomic operator control panel and
adjustable control panel stand. It is easy to installation and
maintenance. Over 100 machines per month installed in china and
abroad.
Model: PG10080
X-RAY GENERATOR
Orientation: Downward
Tube Current:0.4~1.2mA(adjustable)
Anode Voltage:100~160KV(adjustable)
Angle: 80°
Generator cooling/working periods: Sealed oil bath with forced
air/100％
OPERATING ENVIRONMENT
Storage Temperature: -20oC to 60oC
Operating Temperature: 0oC to 45oC
Relative Humidity: 20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.0 KW (Max)
Noise<58DB
X-RAY Sensor:
L-shaped array detector 24bit
Image Performance System:
Display: High-resolution 19 inch color LCD display
Color quality: 24-Bit real colors based on materials
Edge enhancement: Object contour edge is more distinct
Super image enhancement: Image detail is more distinct
High penetration display: Increase the contrast of bright area in
image to make the area that is easy to penetrate appear more
clearly
Low penetration display: Increase the contrast of dark area in
image to make the area that is difficult to penetrate appear more
clearly.
Magnifier: Partial magnifying function
Brightening/dimming: Increase/Decrease brightness of image
Image recurrence: Display the previous twenty images and process
any one of them
Image restoration: Restore image to initial status
Image storage: Real-time store any image and process it in
operation status
Multi-energy: High/low energy: Switch from high energy to low energy
Color material identification: Organic objects in orange, inorganic objects in blue, mixture in
green Assist to detect drug and explosive powder
Special features:
Network interface: Capable of connecting to LAN, and support
multi-terminal check for baggage at same time
Safety ray: Ray is transmitted under automatic control, avoiding
the error
One-key shutdown control: Just rotate the key to shut down the
machine; it is safety, easy and convenient
Eagle eye: Capable of expediently observing the magnifying area
Self-diagnosis function: Give message automatically if malfunction
for prompt maintenance
Image Performance System:
Display: High-resolution 19 inch color LCD display
Color quality: 24-Bit real colors based on materials
Edge enhancement: Object contour edge is more distinct
Super image enhancement: Image detail is more distinct
High penetration display: Increase the contrast of bright area in
image to make the area that is easy to penetrate appear more
clearly
Low penetration display: Increase the contrast of dark area in
image to make the area that is difficult to penetrate appear more
clearly.
Magnifier: Partial magnifying function
Brightening/dimming: Increase/Decrease brightness of image
Image recurrence: Display the previous twenty images and process
any one of them
Image restoration: Restore image to initial status
Image storage: Real-time store any image and process it in
operation status
Multi-energy: High/low energy: Switch from high energy to low energy
Color material identification: Organic objects in orange, inorganic objects in blue,mixture in
green Assist to detect drug and explosive powder
Special features:
Network interface: Capable of connecting to LAN, and support
multi-terminal check for baggage at same time
Safety ray: Ray is transmitted under automatic control, avoiding
the error
One-key shutdown control: Just rotate the key to shut down the
machine; it is safety, easy and convenient
Eagle eye: Capable of expediently observing the magnifying area
Self-diagnosis function: Give message automatically if malfunction
for prompt maintenance
| X ray Dose per inspection | <1.5μSv |
| Wire Resolution | 38AWG Guarantee 40 AWG typical |
| Penetration | 28-32 mm |
| Tunnel Size | 1000mm×800mm |
| Conveyor Speed | 0.22m/s |
| Conveyor height | 338.5mm |
| Conveyor Max Load | 200kg |
| Penetration Resolution | 30AWG guarantee, 32AWG typical |
| Film Safety | Guarantee ASA/ISO1600 Film |
| X-ray Leakage | <0.5 μSv/h (at a distance of 5cm From external housing) |
Applications:
- Airports
- Transport terminals
- Buildings
- Factories (to find needle in clothing, shoes, bags)
- Courthouses
- Embassies
- Military installations
- Prisons
- Hotels
- Schools
- Convention centers
- Security checkpoints
- Special events location
Competitive Advantage:
Integrated, cost Effective, Turn-Key Security
Fit for small Baggage and Parcel Security Inspection.
Increased detection capability
Friendly interface for ease-of-use
Reliable performance and uncompromising value
